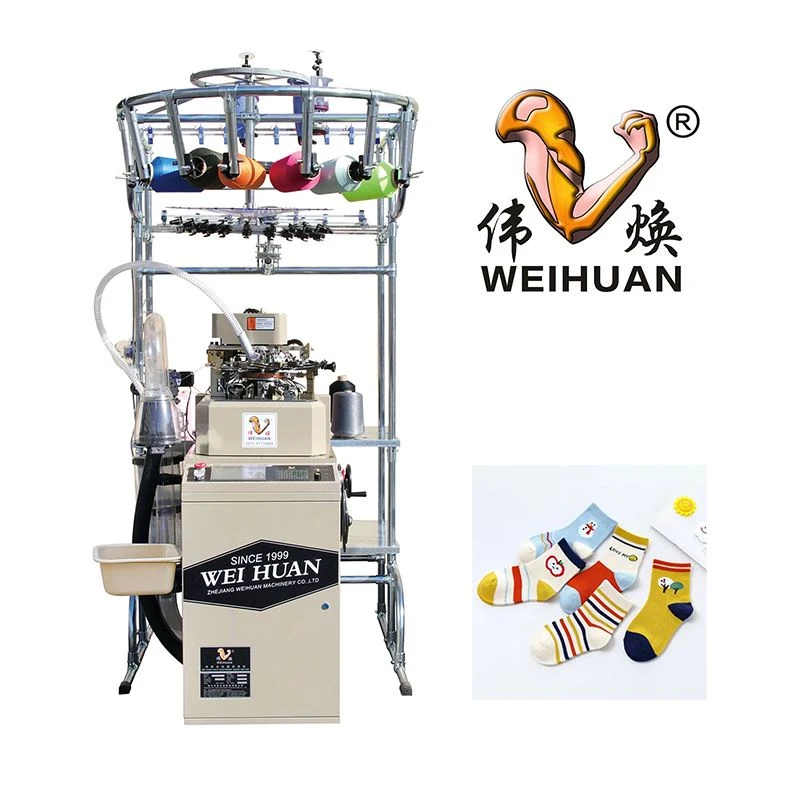

3.75 Inch Computerized Single Cylinder Terry Sock Knitting Machine

Basic Info. Product Description Technical spec.Cylinder Diameter 3-3/4"Number of Needles 72-240NRotation 330-380(Max 400)Servo Motor 0.75KWFan Motor 0.75WControl Box 0.8WNet Weight 380KGGross Weight 430KGPacking Specification(W*L*H)950*770*1700MM 18/36 SETS 20GP/40HQProduction capacity:300...

Send InquiryChat Now
3.75 Inch Computerized Single Cylinder Terry Sock Knitting Machine

Basic Info.

Model NO.:WH604Type:Terry
Knitting Machine Cut:WH604Knitting Product Type:Socks
Knitting Style:WarpKnitting Method:Single
Needle Style:Latch NeedleNeedle Bar Style:Circular Knitting Machine
Computerized:ComputerizedCertification:CE, ISO9001: 2000
Condition:NewPackage:Vacuume Packing and Wooden Case
Specification:CE ISO 9001: 2000Trademark:Global
Origin:Hangzhou, ZhejiangSize:3-3.75 Inches
HS Code:844711000Production Capacity:900 Sets / Per Month

Product Description

Technical spec.Cylinder Diameter 3-3/4"Number of Needles 72-240NRotation 330-380(Max 400)Servo Motor 0.75KWFan Motor 0.75WControl Box 0.8WNet Weight 380KGGross Weight 430KGPacking Specification(W*L*H)950*770*1700MM 18/36 SETS 20GP/40HQProduction capacity:300 pairs/ 24 hours

Technical Features1.Fully elec2.Driven by servo moctorornic control weaving system,non-roller3.Adjust yarn tension and weaving density by stepping motor4.Keeping high speed running to improve the inner cam5.Auto oil feeder system6.Protecting computer and electronic components by a automaticlly sensing device7.Availble with 1 main color and 5 pattern colors8.Max range of pattern is 1200 rows

9.Apply the thchniques of double picker point and double down picker ,making the running of stocking toe and heel much steadier, Y shape heel is avalible10.The automatic alarm system,display broken needle,yarn and other electronic failure.11.Equipped with the UPS system can memory the current.When power restord ,it can continueknitting to avoid any loss or wastage. program and knitting action if transience power off,12.Weaving process words by the keyboard and LCD13.Password-protection for parameter setup ,to avoid the inadvertent change or unallowedmodification, improve the reliability and satefy14.Available in 220/415V and 50/60HzWeave For example:terry Single-cylinder rib,T-crotch,bikini,jacquard bikinni,both sides patterns,floating linereforce line/circle pattern,color jacquard,bag-heel,abdoment tight tand hip lift,wave shape edge ect
