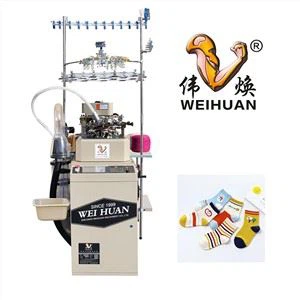

Single Cylinder Computerized Jacquard Socks Knitting Machine

Basic Info. Product Description Model: WH-6F-C Make plain sock: 72--168N max speed: 320rpm/min 176--220N max speed: 300rpm/min Main features: 1. One main feeder plus five pattern feeders 2. Possibility of 6 colors in one course and 16 colors on one sock. 3. Drumless, fully computerized control...

Send Inquiry
Single Cylinder Computerized Jacquard Socks Knitting Machine

Basic Info.

Model NO.:WH-6F-CType:Jacquard
Knitting Product Type:SocksKnitting Style:Circular, Jacquard
Knitting Method:SingleComputerized:Computerized
Certification:CE, ISO9001: 2000, CE ISO9000: 2000Condition:New
Package:Vacuum and Plywood CaseSpecification:CE, ISO9000: 2000
Trademark:WEIHUANOrigin:China Mainland
Gross Weight:350kgCylinder Diameter:3.5 Inch
Driving Motor Power:0.85kwBlower Power:0.75kw
Control Case:0.8kwElectricity:220/380/415V
Packing Dimesion:1.2 CbmHS Code:844711000
Production Capacity:900 Sets/Month

Product Description

        Model: WH-6F-C
Make plain sock:
72--168N max speed: 320rpm/min
176--220N max speed: 300rpm/min

Main features:
1. One main feeder plus five pattern feeders
2. Possibility of 6 colors in one course and 16 colors on one sock.
3. Drumless, fully computerized control system.
4. Exclusive inner cam block system for high speed.
5. Stepping motor for elastic yarn and stitch cam control.
6. Electro-pneumatic yarn finger and cam control.
7. Pattern depth up to 1, 500 courses.
8. Multiple stop motion sensors in case of error.
9. Autiomatic re-cycling oiler, counter, and reset function.
10. Equipped with USB for easier data reading
11. Available in 220/380/440V 3phase 50/60Hz.
12. Fully a. C servo motor adopted.
13. Minimized and easy operating function.
14. Battery back-up to protect stored program.
15. Internal UPS can support continuous knitting.
16. Graphic type LCD adopted.
